Replacing The EGR Valve On A 1.9 JTDM

Replacing The EGR Valve On A 1.9 JTDM

These guides serve as an introduction into various Alfa maintenance tasks, and are designed to give Alfa owners a better understanding of the work that is involved. These are not full Alfa Romeo workshop manuals, where you will find the official techniques, technical specs and important safety considerations, which we would recommend you study before attempting any of these tasks.

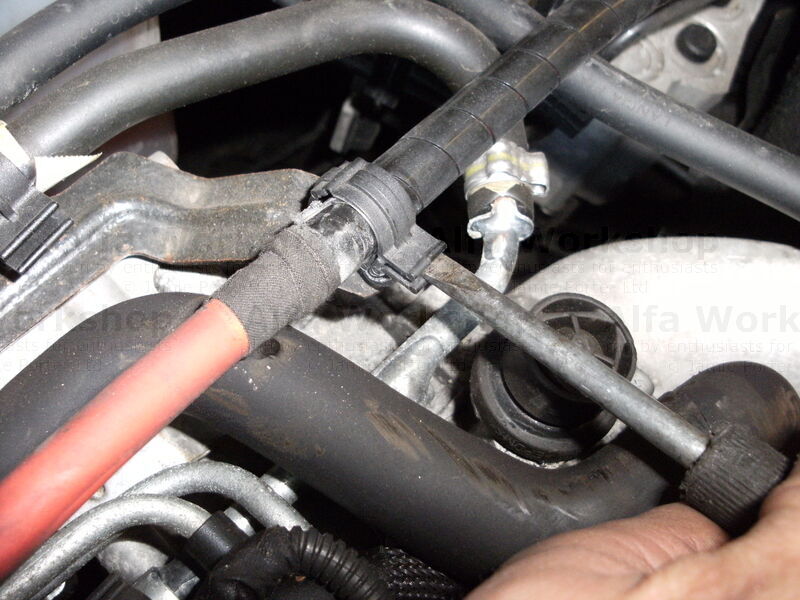

Remove engine top cover and then disconnect this clip if fitted on your model.

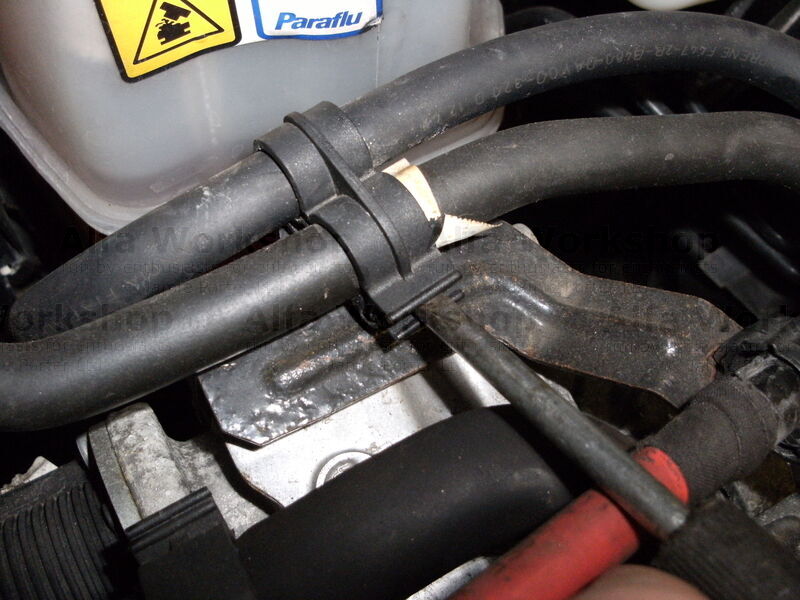

Then this one

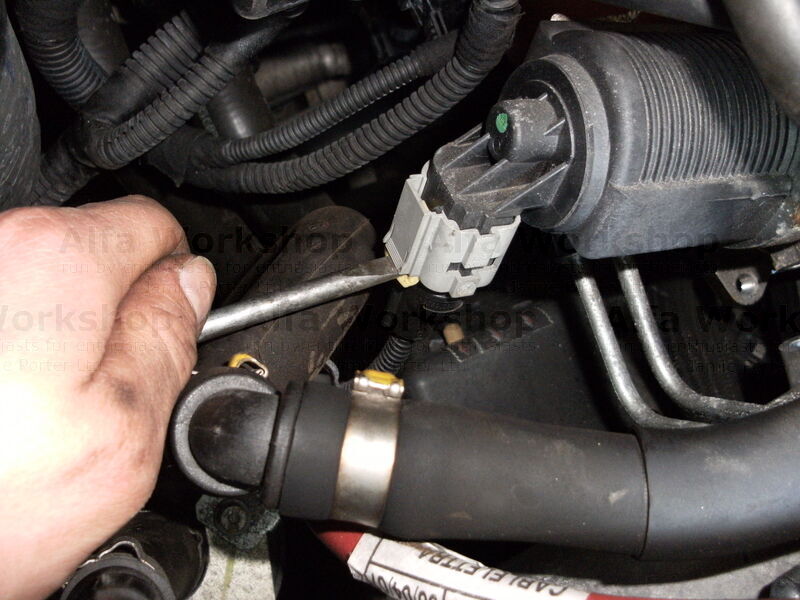

Disconnect the power supply to the EGR valve.

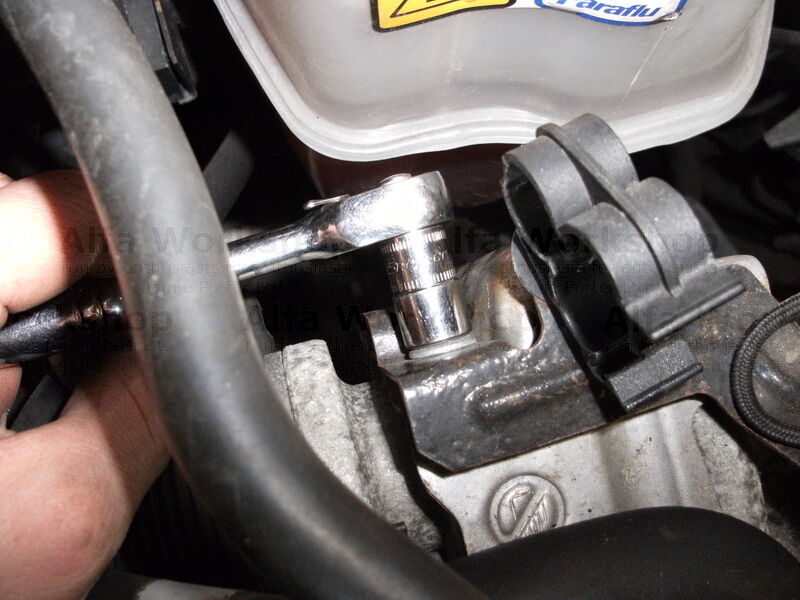

Undo the bracket that retains the pipe.

Remove the heat shield over the valve.

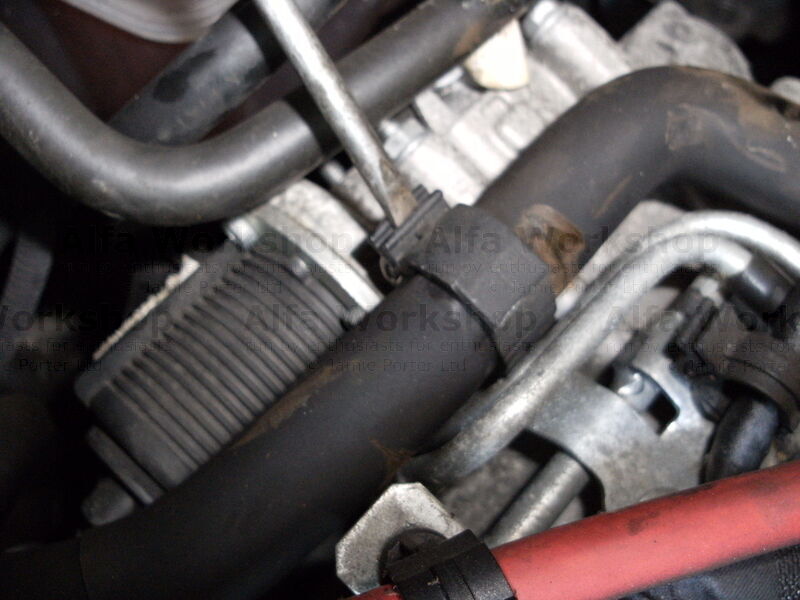

Disconnect this clip

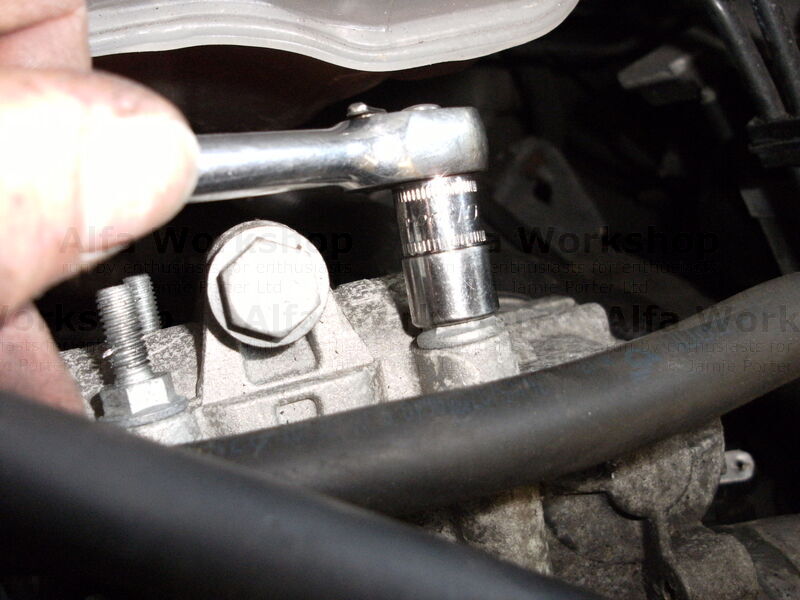

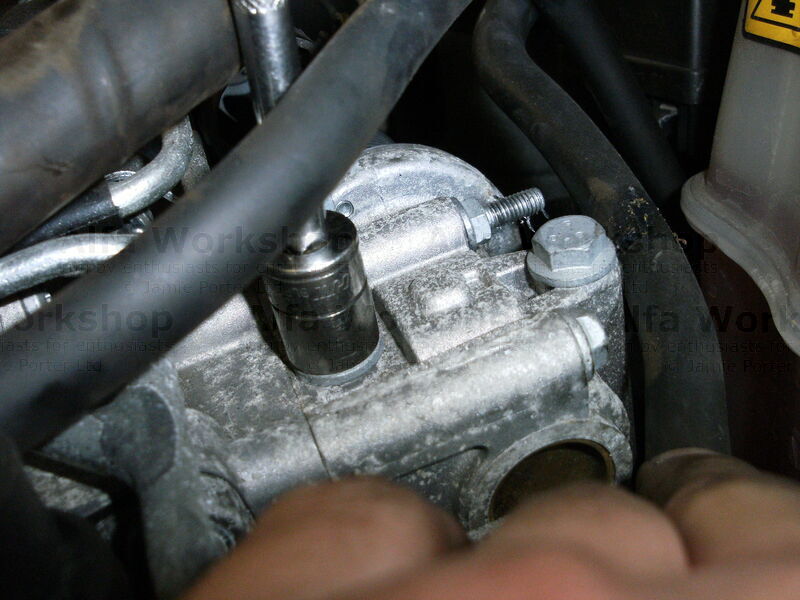

Undo the two bolts on top of the EGR valve

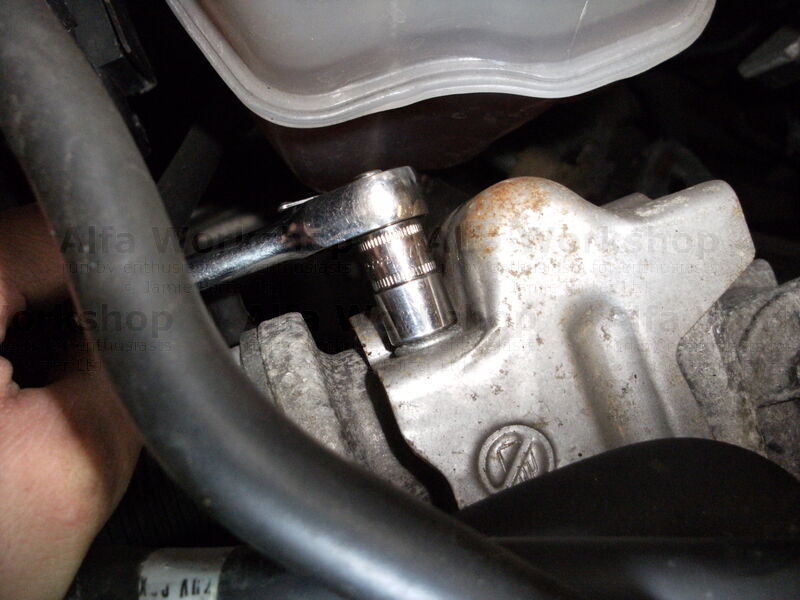

and then the ones on the side of the EGR valve and the valve will come off. When replacing the EGR valve it is best to fit the modified gasket if it hasn’t already been fitted.
