Replacing front brake pads and disks on a Giulia

Replacing front brake pads and disks on a Giulia

These guides serve as an introduction into various Alfa maintenance tasks, and are designed to give Alfa owners a better understanding of the work that is involved. These are not full Alfa Romeo workshop manuals, where you will find the official techniques, technical specs and important safety considerations, which we would recommend you study before attempting any of these tasks.

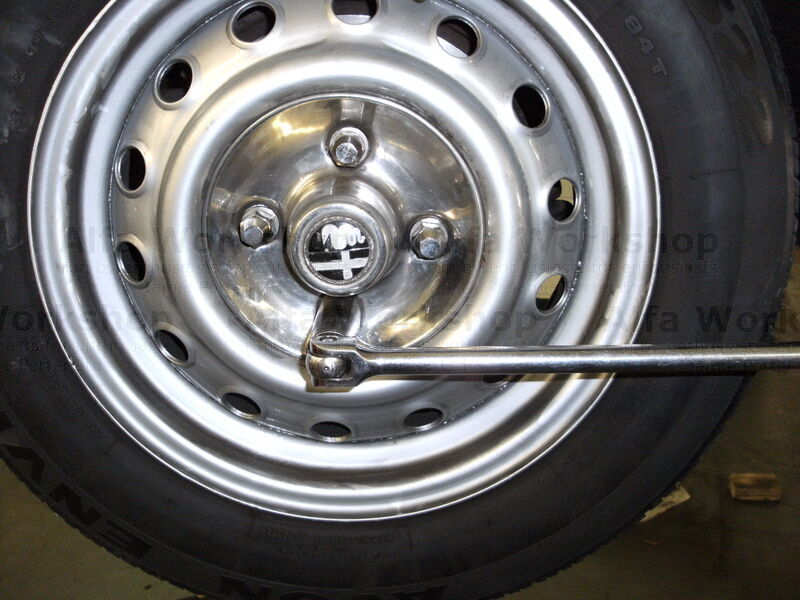

Remove wheel, on early cars with brass wheel nuts the left hand side of the car will have wheel nuts that undo clockwise!

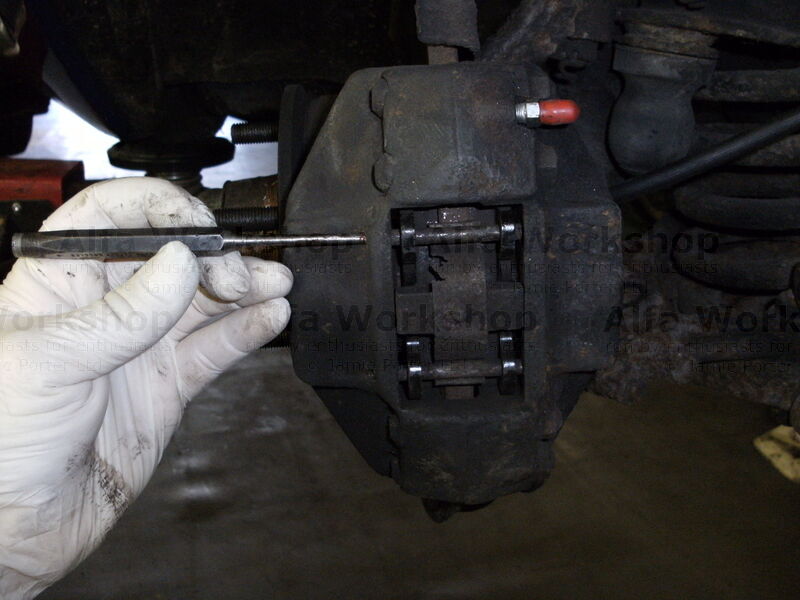

Using a suitable punch remove caliper pins, catching the anti rattle clip as you remove the punch.

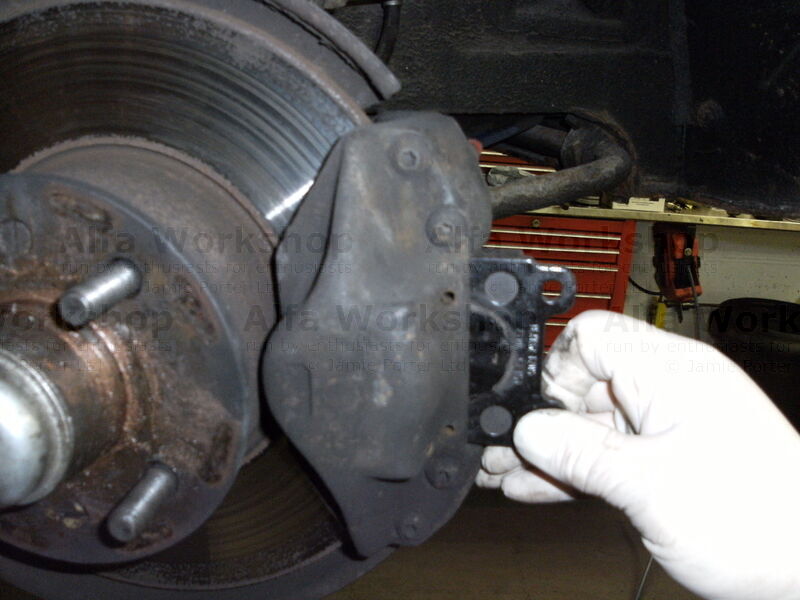

Remove brake pads, If you dont need disks, push the caliper pistons back at this point, making sure they move freely and the cut out is at the top, copper slip the back of the pads carefully and then reverse the process above at this point.

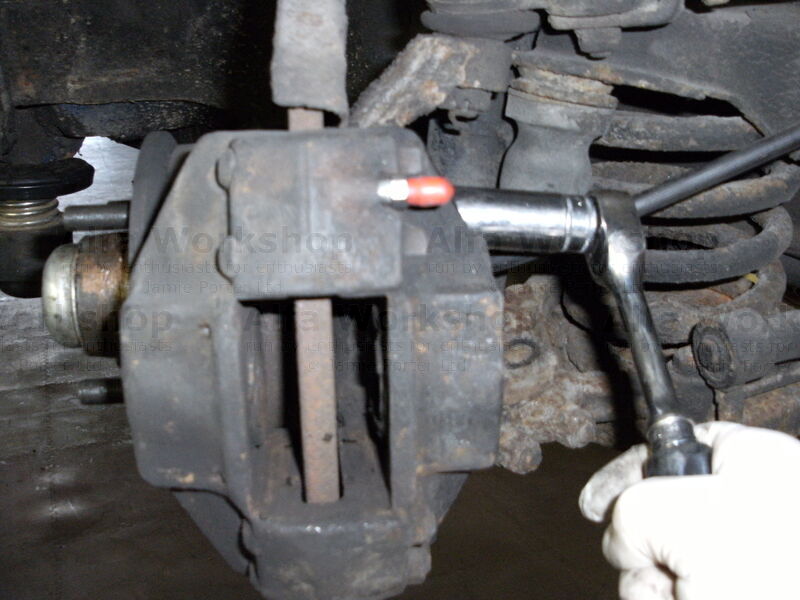

If you are changing the disks, undo the caliper retaining bolts

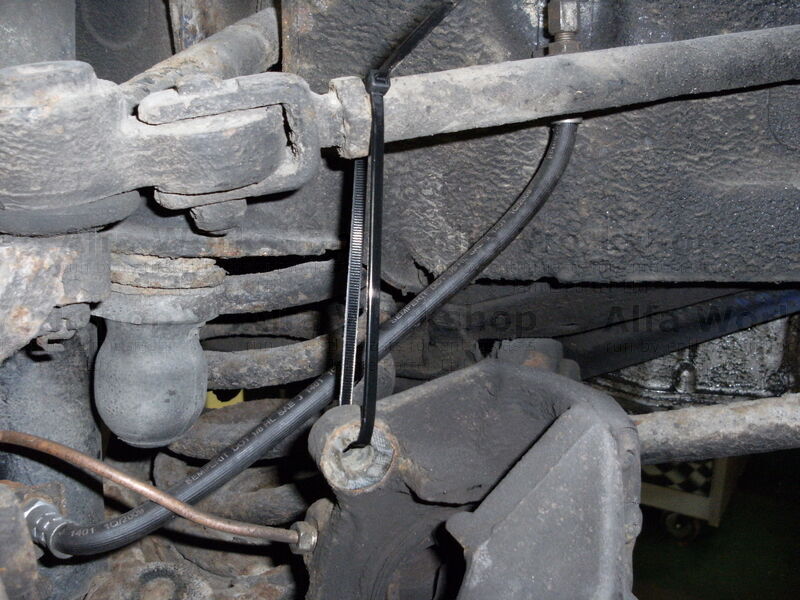

and then carefully support the caliper

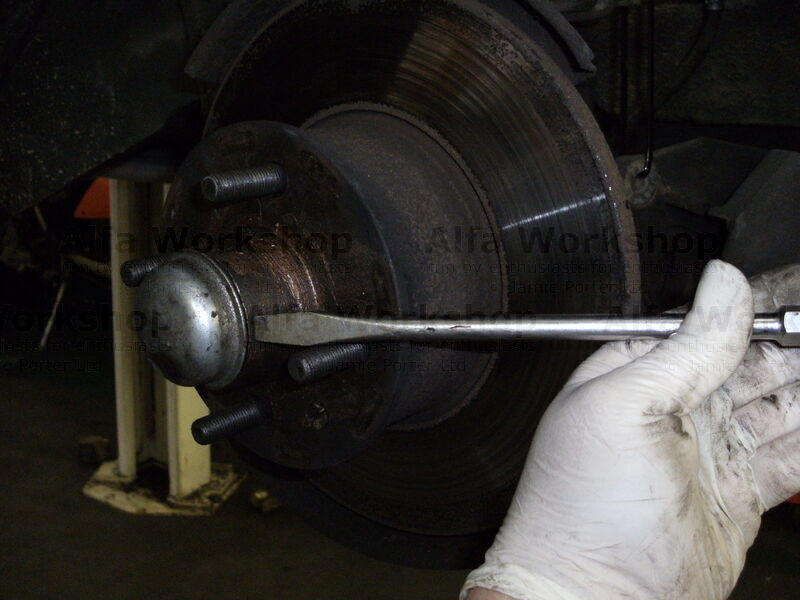

Prise off the bearing end cap carefully

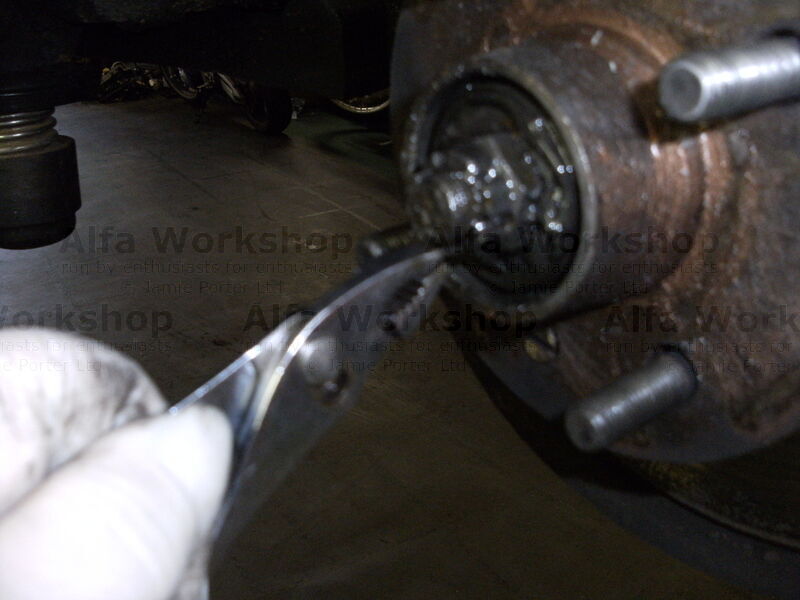

Remove split pin from bearing and undo securing nut, the nearside undoes anti clockwise and then remove the hub assembly from the car.

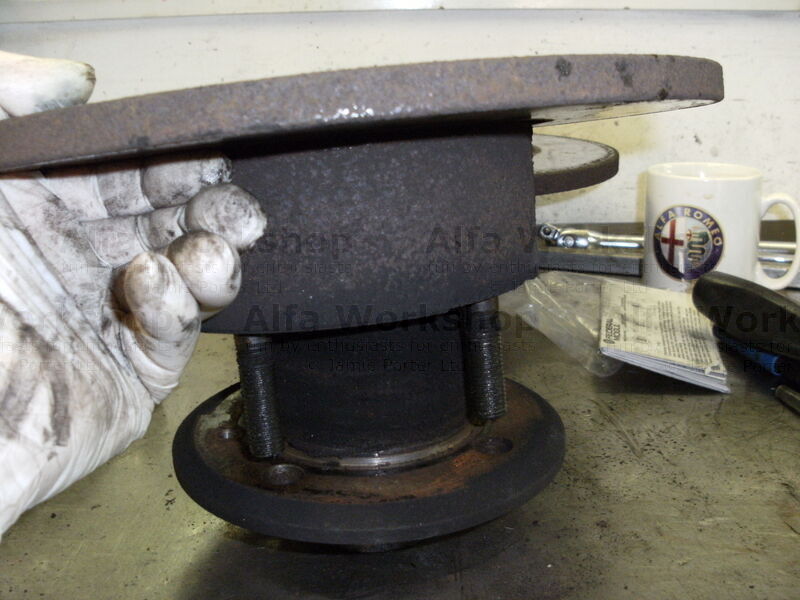

Undo the two screws that secure the disks and remove the disks from hub, clean up the mounting face on the hub but do not put any grease or corrosion proofing on it and then mount the new disk

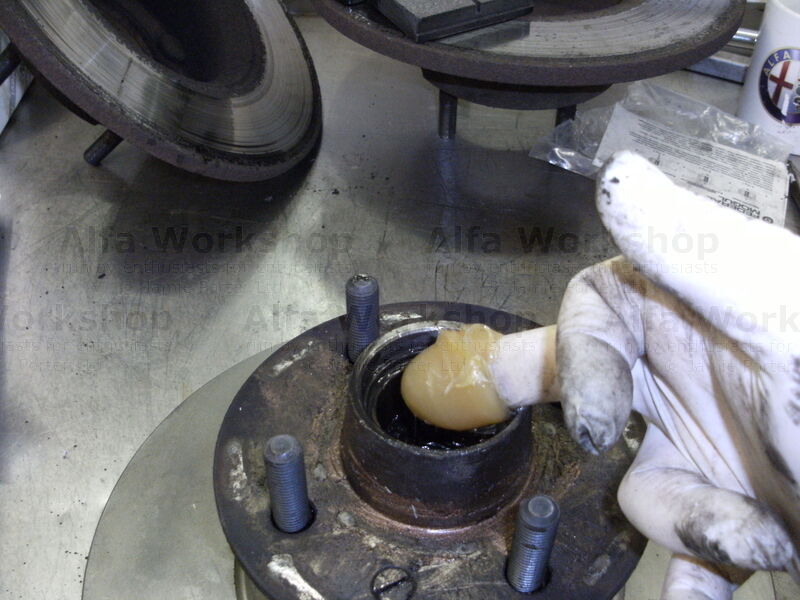

Grease the front wheel bearing

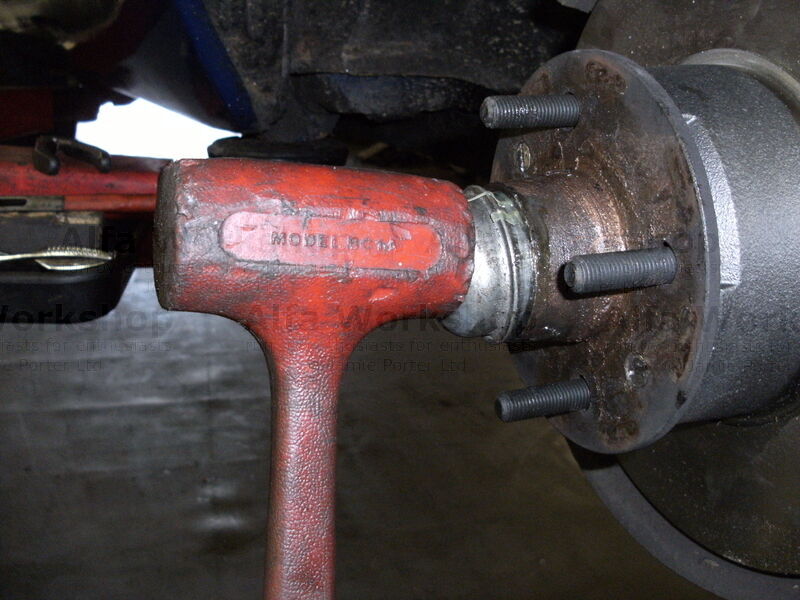

Reassemble using the reverse of the procedure above making sure you adjust the front wheel bearing correctly
