Removing The Front Drop Link On A MiTo, Giulietta Or 500L

Removing The Front Drop Link On A MiTo, Giulietta Or 500L

These guides serve as an introduction into various Alfa maintenance tasks, and are designed to give Alfa owners a better understanding of the work that is involved. These are not full Alfa Romeo workshop manuals, where you will find the official techniques, technical specs and important safety considerations, which we would recommend you study before attempting any of these tasks.

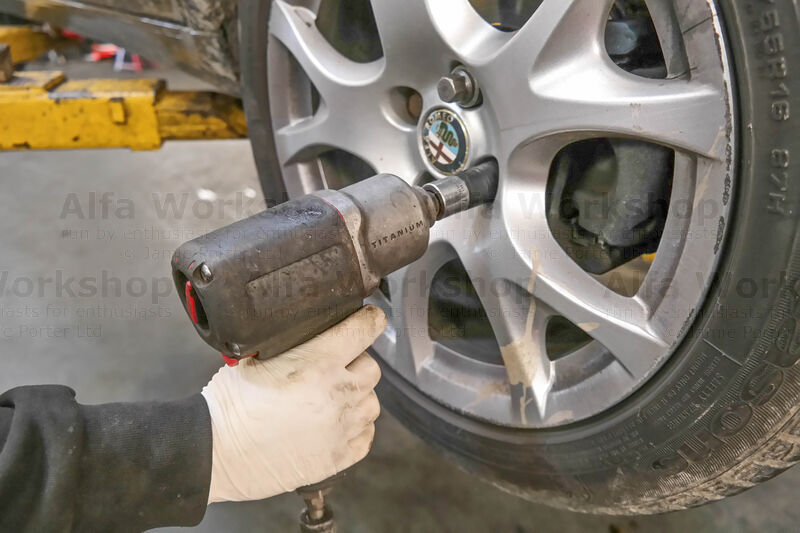

Remove the front wheel.

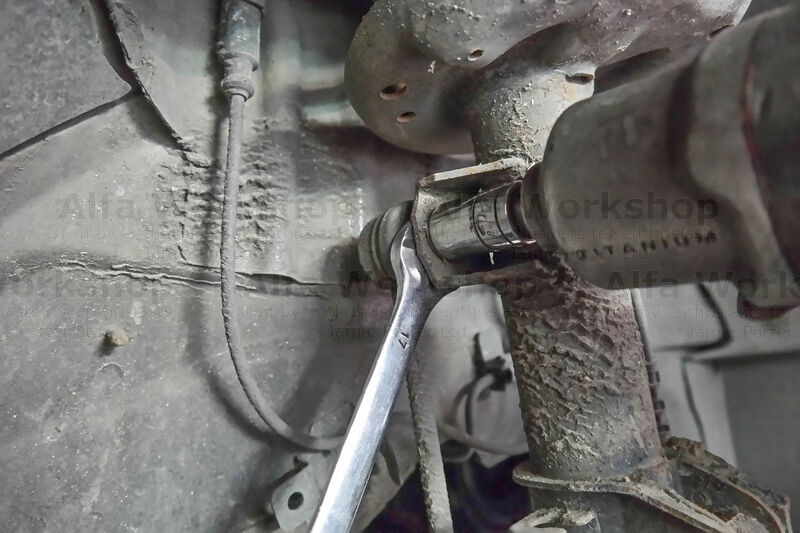

On the early models undo the top bolt connected to the shock absorber bracket using a 17mm spanner to hold the ball joint while removing the nut with a 16mm socket.

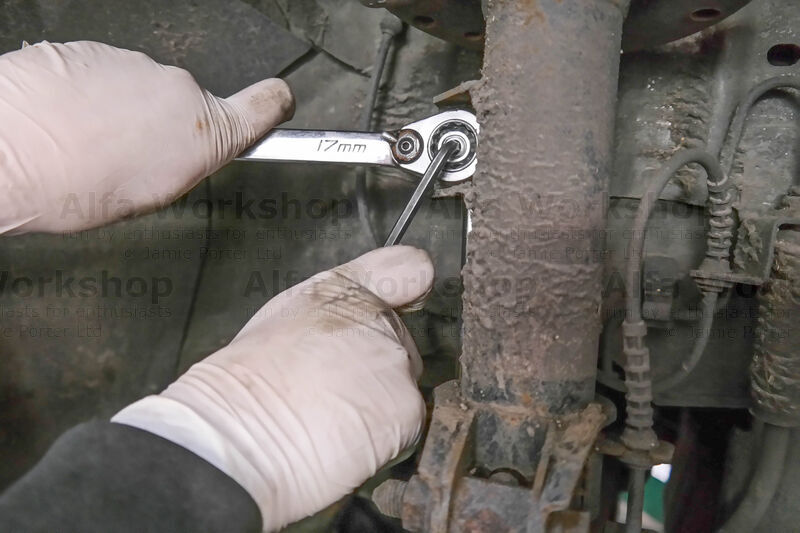

On the later models use a 17mm spanner to undo the nut while holding the tip of the ball joint with a 5mm Allen key.

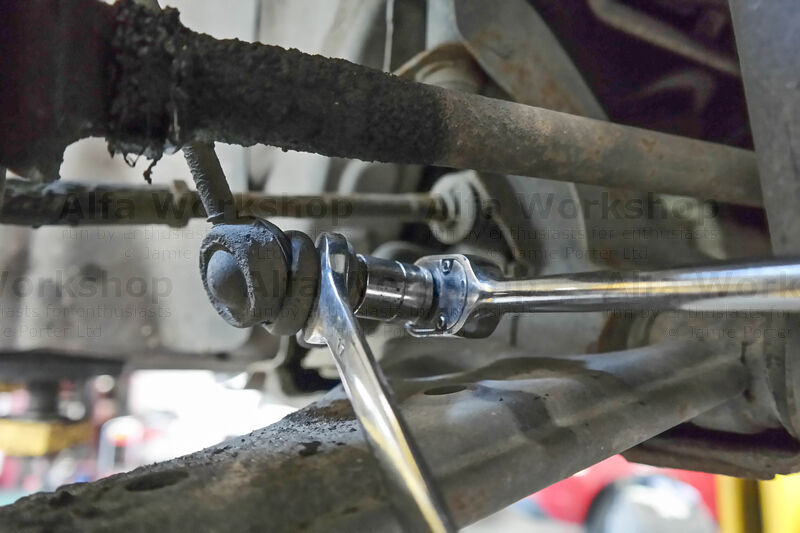

Undo the bottom ball joint connected to the anti roll bar and and the drop link is free.
