How to replace the rear wishbone on the Alfa 4C

How to replace the rear wishbone on the Alfa 4C

These guides serve as an introduction into various Alfa maintenance tasks, and are designed to give Alfa owners a better understanding of the work that is involved. These are not full Alfa Romeo workshop manuals, where you will find the official techniques, technical specs and important safety considerations, which we would recommend you study before attempting any of these tasks.

Remove the rear diffuser and undertray

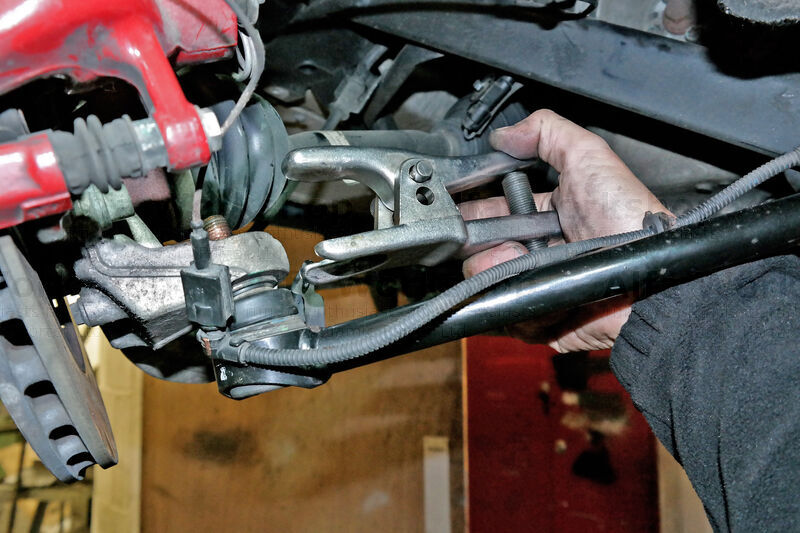

Using a ball joint splitter carefully separate the outer ball joint from the upright. If you intend to refit the existing part make sure you do not damage the boot that protects the joint.

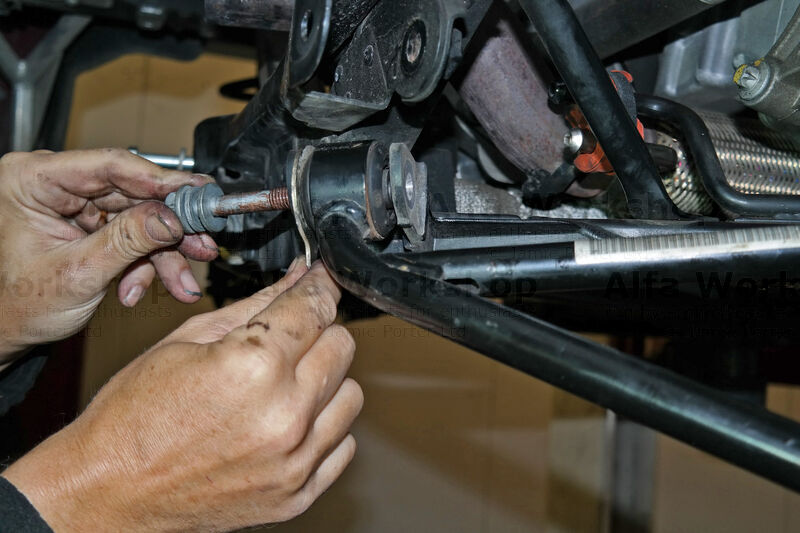

Next undo the rear bolt that secures the wishbone to the chassis.

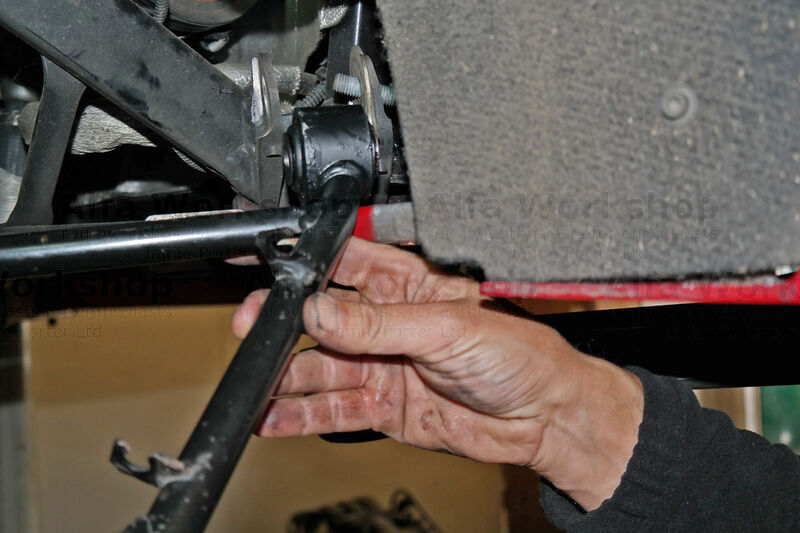

Finally remove the bolt that secures the wishbone to the front of the subframe. to refit the wishbone simply reverse the procedure above.
