How to cure the horn push on an Alfa 156/147 and GT

How to cure the horn push on an Alfa 156/147 and GT

These guides serve as an introduction into various Alfa maintenance tasks, and are designed to give Alfa owners a better understanding of the work that is involved. These are not full Alfa Romeo workshop manuals, where you will find the official techniques, technical specs and important safety considerations, which we would recommend you study before attempting any of these tasks.

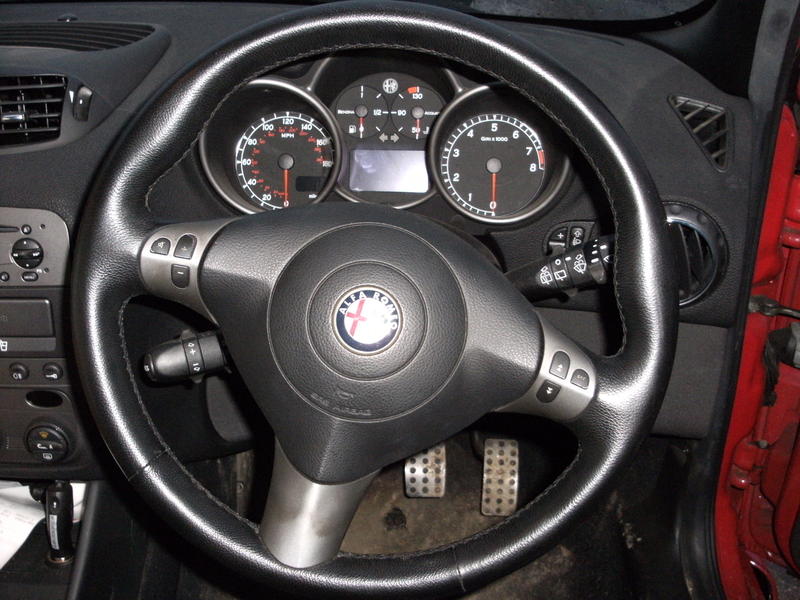

1. Remove key from car and DO NOT put back in the ignition until you have finished this procedure

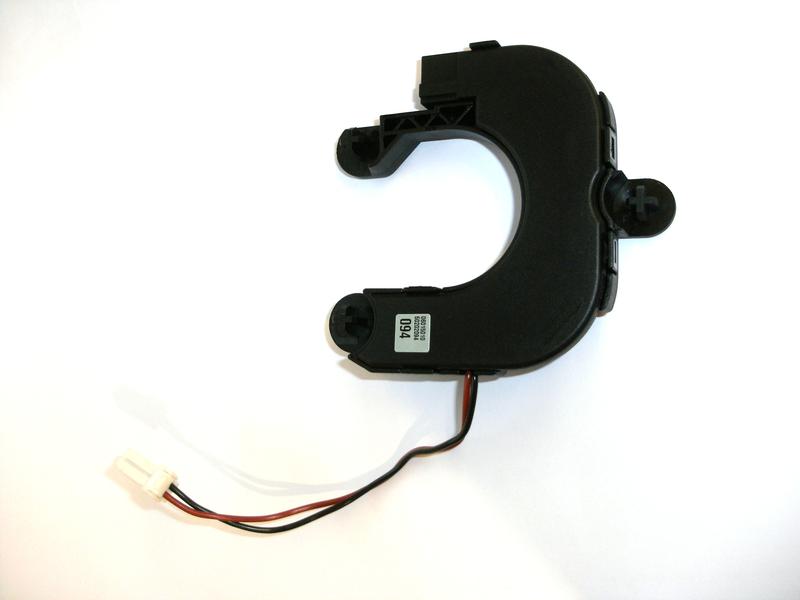

3. Remove the small black circuit board from inside the steering wheel.

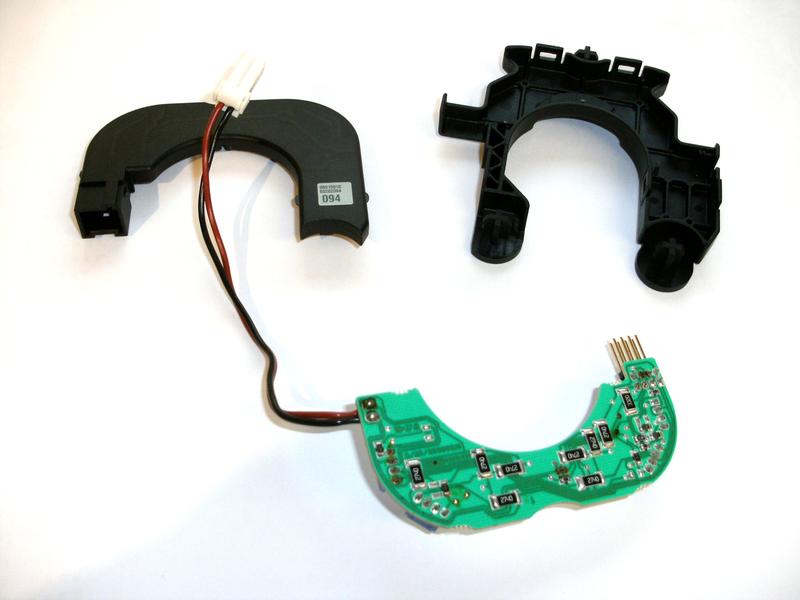

4. Remove casing from circuit board.

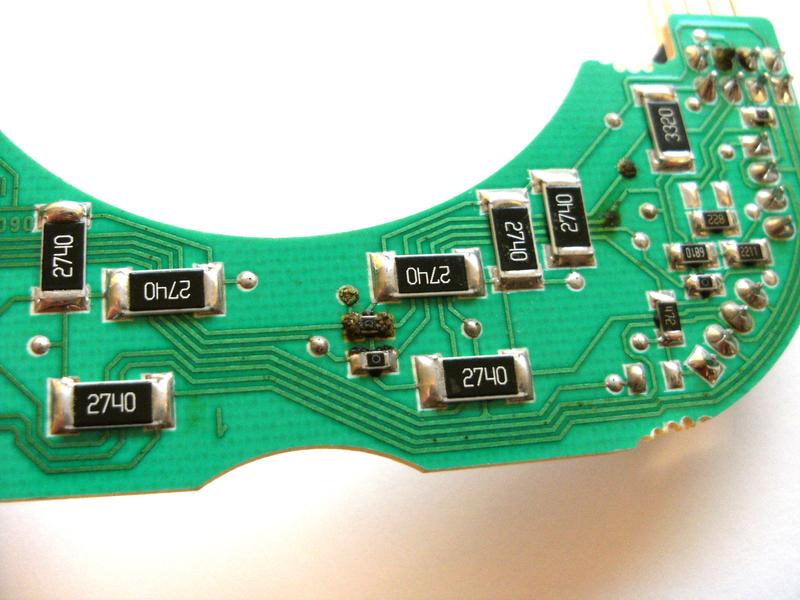

5. Inspect circuit board and you will find that the red +ve track across the board is corroded and open circuit.

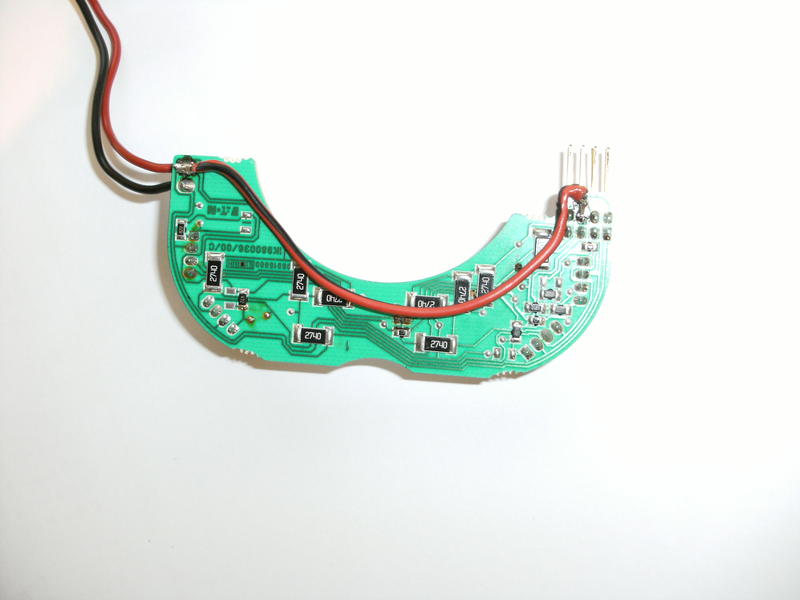

6. Solder a wire from the red lead to the horn push to second terminal from the left on the top row of pins on the right hand side of the board (see picture) The tight U turn from the pin is the best solution to stop the wire going through the other pins and still getting it in the existing casing without anything shorting out.

7. Refit the circuit board into its case.
